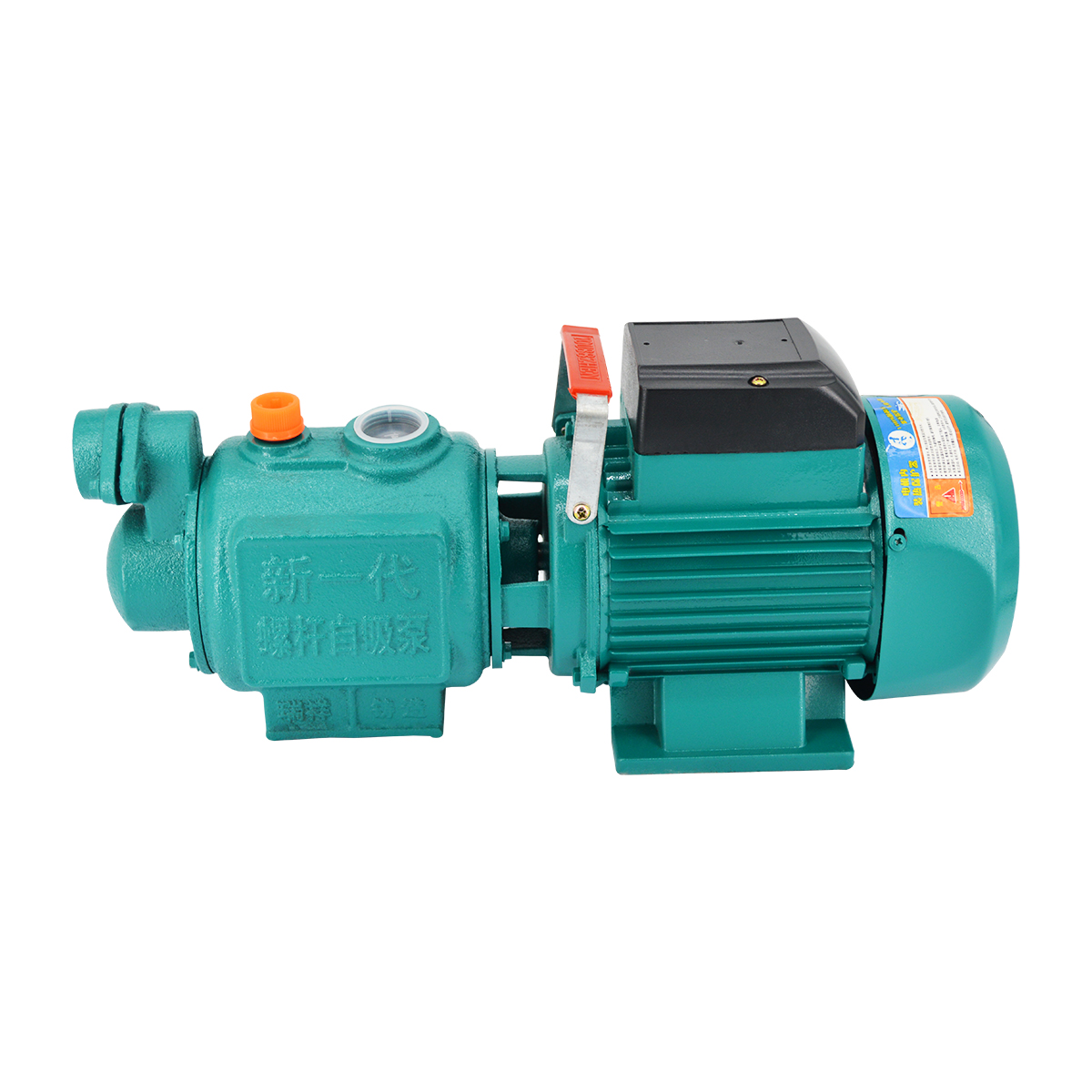

Screw self-priming pump
SUMMARY
The main working parts of the screw self-priming pump are eccentric screw(rotor) and fixed bushing(stator). Due to the special geometry of the rotor and stator and the formation of several separate sealed dissolving cavities, the operation of the rotor sucks and delivers the medium in each sealed cavity continuously, at a uniform speed and with constant volume.The impeller structure of the electric pump is screw type so it is called screw self-priming pump.
PRODUCT ADVANTAGES
1.All conner motor. aood power. Allconner coistable operationlow noise oneration. new sillicon steel sheet, low temperature and better pumping force.
2.Hiqh precision bearing, stable operation. Seiko bearing is not easy to wear rust and use for a long time.
3.Micro control intelligence.automatic start and stopfree your handsPressure stabilizing technologw can increase the pressurestore energy, stop frequent startup and make the water outlet more stable.
4. Bass runs without disturbing your sleen.Water self start. water self stop intelliaent booster pumn.
5. Easily solve the problem of home water pressureTap water pressurizationsolar pressurization, water heater pressurization，etc.
PARAMETER
| Model | Rated Voltage （V） | Rated Frequency （Hz） | Input Power （W） | Output Power （W） | Class | H.max （m） | Q.max （L/min） | Capacitor （uF） | Speed （r/min） | IP | Max.Liquid temperature℃ |
| ZGD-550 | 220V-240V | 50 | 730 | 550 | B | 60 | 50 | 12 | 2850 | 44 | 40 |
| ZGD-750 | 220V-240V | 50 | 1000 | 750 | B | 70 | 50 | 15 | 2850 | 44 | 40 |
| ZGD-1100 | 220V-240V | 50 | 1460 | 1100 | B | 80 | 50 | 20 | 2850 | 44 | 40 |
| ZGD-1500 | 220V-240V | 50 | 2000 | 1500 | B | 90 | 50 | 25 | 2850 | 44 | 40 |
| ZGD-1800 | 220V-240V | 50 | 2400 | 1800 | B | 100 | 50 | 30 | 2850 | 44 | 40 |
