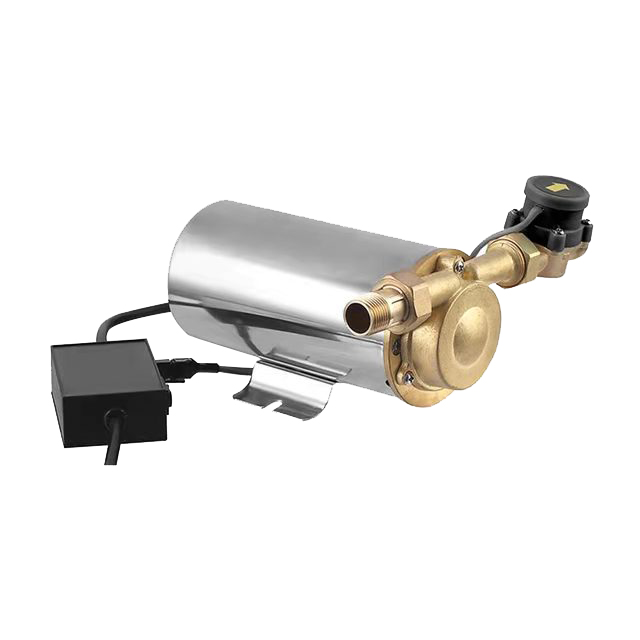

Stainless steel booster pump
CHARACTERISTIC
1.The pump has compact structuresmall volume and beautiful appearance.Its vertical structure determines that the installation covers a small areaand its center of gravity coincides with the center of the pump foot thus enhancing the operation stability and service life of the pump.
2. The suction port and discharqe port of the pump are horizontal,which simplifies the connection of the pipeline.
MAIN PURPOSE
1.The water pressure of the water heater is insufficient to pressurize. Solve the problem that the water heater does not ignite due to insufficient water pressure. Install a booster pump to make you shower freely and take a comfortable bath.
2. The tap water pressure is insufficient to pressurize.The water supply of household water storage tank can greatly increase the water pressure and keep the water pressure stable.
3.Pressurize the water tower of the apartment.The uppermost residence of the apartment is too close to the water tank,resulting in insufficient water pressuretoo small water volumeor the water heater can not be ignited.
4. Industrial equipment circulating boiler cooling.The equipment and devices are higher than the horizontal level and cannot supply waterThe booster pump is used and eguipped with water flow check valve to make the boiler,equipment and machinery work continuously.Cooling circulation of industrial equipment such as air conditioner,argon arc weldinglaser instrument,injection molding machine,food
machine, medical equipmentsmall boiler water supply etc.
5.Domestic heating air and ground heating water circulation (this pump is especially resistant to high temperature and can withstand a maximum temperature of 75℃)
PARAMETER
| Model | Rated Voltage（V） | Rated Frequency （Hz） | Input Power （W） | Output Power （W） | Class | H.max （m） | Q.max （L/min） | Capacitor （uF） | Speed （r/min） | IP | Max.Liquid temperature℃ |
| X-100 | 220V-230V | 50 | 135 | 100 | B | 12 | 22 | 3 | 2850 | 44 | 110 |
| X-150 | 220V-230V | 50 | 200 | 150 | B | 16 | 30 | 4 | 2850 | 44 | 110 |
| X-300 | 220V-230V | 50 | 400 | 300 | B | 18 | 35 | 6 | 2850 | 44 | 110 |
