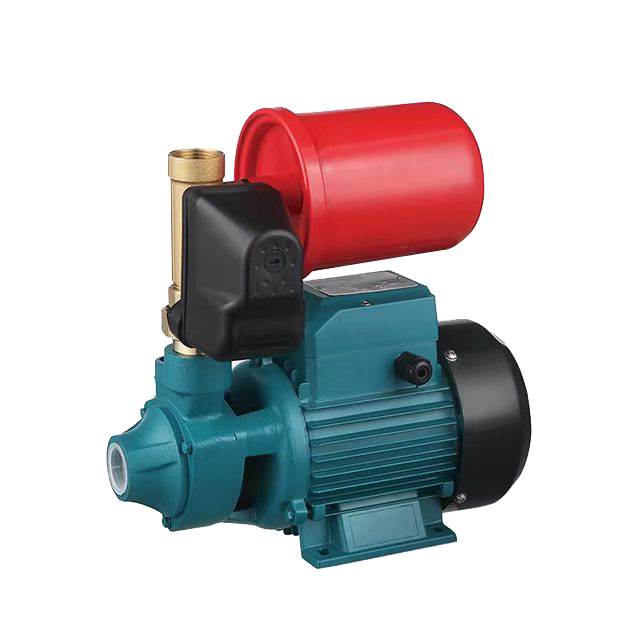

Self-priming clean water pump
SUMMARY
The pump is a micro clean water electric pump,which is composed of motor, water pump and seal. The otor is a single-phase asynchronous motor; The water pump is a vortex impeller structure with self-priming function.A single end face mechanical seal is adopted between the water pump and the motor, and a "0" shaped oil-resistant rubber seal ring is used as the static seal at the fixed stop seal.The pump is widely used in domestic water intake, well water extraction, tap water pressurization, garden irrigation, vegetable greenhouse water supply, industrial and mining enterprises and aquaculture.
MAIN PURPOSE
1. The automatic water supply of tap water pipeline does not use elevated water tank, and the wat pply of the whole building is directly pressurized, and the pressurization is stable. it is more suitable for surization on the water heater pipeline with insufficient water pressure. it will not be cold and hot during water supply, and can supply water to multiple faucets.
2.The automatic water supply on the knee of underground wells and open wells can be used in shallow s with the water level of underground wells and leaky fill wells not less than 8m, which can be direc to the residential faucet without going through the sink, and can meet the water supply of the whole building of two-story or three-story houses.
3. The water pressure of tap water is insufficient to pressurize the domestic water storage tank, which can greatly increase the water pressure and keep the water pressure stable.
4. The room heating water cycle is used for the heating cycle of solar water heaters used in houses, apartments and schools and the water supply of domestic boilers.
5.The high-rise residents can directly install the self-priming pump indoors, with a suction range of 8m. As long as the high-rise residents install the pump indoors, it is easy to suck up the tap water downstairs and the water is strong.
PARAMETER
| Model | Rated Flow （m³/h） | Max Flow （m³/h） | Rated Head （m） | Max Head （m） | Rated Power （kw） | Rated Voltage （V） | Suct （m） | Speed （r/min） | Pipz Size （mm） |
| 1WZB-35 | 1 | 2.4 | 15 | 35 | 0.37 | 220 | 8 | 2850 | 25 |
| 1WZB-45 | 1.5 | 3.5 | 20 | 45 | 0.55 | 220 | 8 | 2850 | 25 |
| 1WZB-65 | 2 | 3.5 | 25 | 65 | 0.75 | 220/380 | 8 | 2850 | 25 |
| 1.5WZB-20 | 12 | 15 | 16 | 20 | 0.75 | 220/380 | 8 | 2850 | 40 |
| 2WZB-20 | 16 | 20 | 16 | 20 | 1 | 220/380 | 8 | 2850 | 50 |
| QB-60 | 1 | 2.4 | 15 | 35 | 0.37 | 220 | 8 | 2850 | 25 |
| QB-70 | 1.5 | 3.0 | 20 | 45 | 0.6 | 220 | 8 | 2850 | 25 |
| QB-80 | 2 | 3.6 | 25 | 55 | 0.75 | 220 | 8 | 2850 | 25 |
