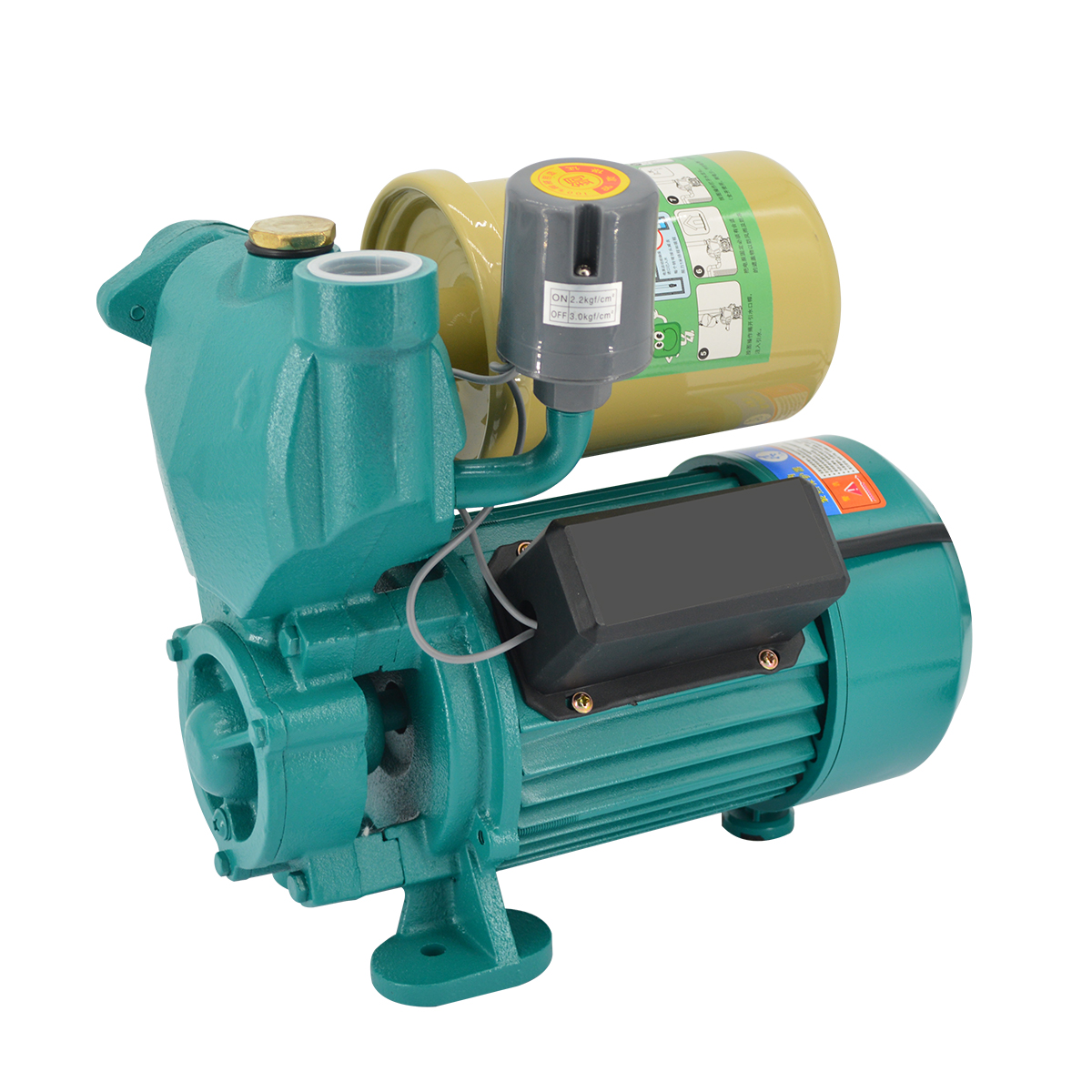

Fully automatic self-priming pump
SUMMARY
ZB and ZBD self-priming pump series (hereinafter referred to as electric pump)are composed of motor, seal and water pump. The motor is a single-phase asynchronous motor, and the pump part is a vortex impeller structure with self-priming function. Single end mechanical seal is adopted between the water pump and the motor,and "Ooil resistant rubber seal ring is used as static seal at the fixed stop seal.
PRODUCT USE
It is suitable for pressurization and transportation of clean water without impurities in general houses
Water supply system of apartment
Civil roof water tower, automatic water supply system
Drinking water and raw drinking system
Beauty salons，supermarkets
SERVICE CONDITIONS
1.The working medium is non corrosive clean waterthe volume of sand content in the medium shall not exceed 0.10%, and the particle size shall not be greater than 0.20mm.
2.The medium temnerature shall not exceed 40Cand the H value of the medium shal be betweer 6.5-8.5.
3.The power freauency is 50Hzthe sinale-phase voltaae is 220Vand the voltaae fluctuation ranae is 0.9-11 times of the rated value.
PARAMETER
| Model | Rated Voltage （V） | Rated Frequency （Hz） | Input Power （W） | Output Power （W） | Class | H.max （m） | Q.max （L/min） | Capacitor （uF） | Speed （r/min） | IP | Max.Liquid temperature℃ |
| 1AWZB-250 | 220V-240V | 50 | 330 | 250 | B | 25 | 30 | 6 | 2850 | 44 | 70 |
| 1AWZB-370 | 220V-240V | 50 | 490 | 370 | B | 30 | 35 | 8 | 2850 | 44 | 70 |
| 1AWZB-550 | 220V-240V | 50 | 730 | 550 | B | 35 | 41 | 15 | 2850 | 44 | 70 |
| 1AWZB-750 | 220V-240V | 50 | 1000 | 750 | B | 45 | 50 | 15 | 2850 | 44 | 70 |
| 1AWZB-1100A | 220V-240V | 50 | 1470 | 1100 | B | 50 | 58 | 20 | 2850 | 44 | 70 |
